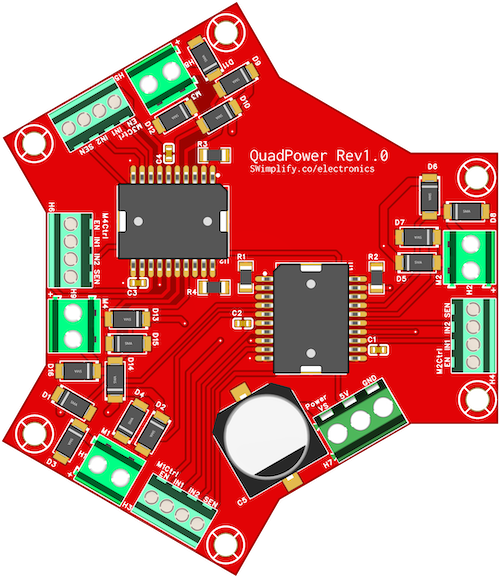

QuadPower Motor Driver Board
Shipping Information
We ship your order via Parcel Post, with an estimated delivery time of 2–3 business days. You'll receive a tracking number once your item has been dispatched.
Return Policy
If you're not completely satisfied with your purchase, you may return it within 14 days of delivery for a full refund or exchange. Items must be in original condition and packaging. To start a return, email us at team@swimplify.co with your order number and reason. Return shipping is at your expense unless the item is defective or incorrect.
Overview
Take control of your motors with QuadPower, a robust and efficient motor driver board designed for high-power applications. Whether you're building robots, CNC machines, or automation systems, QuadPower ensures precise motor control, high reliability, and powerful performance.
Key Features
- Control 4 Motors Independently – Perfect for robotics, automation, and industrial applications.
- High-Power Support – Operates with motor voltages up to 46V and delivers 2A continuous per channel (3A peak).
- Dual L298P H-Bridge Drivers – Proven and reliable motor driver ICs for stable performance.
- PWM Speed Control – Adjust motor speed dynamically using a Pulse Width Modulation (PWM) signal.
- Direction Control – Set motor direction using simple logic inputs.
- Current Sensing Output – Monitor real-time current consumption with an analog output ranging from -1V to 2.3V.
- Compact and Efficient Design – Optimized for minimal heat generation and maximum performance.
- Plug & Play Connectivity – Screw terminals and header pins for easy integration into your projects.
Technical Specifications
- Motor Voltage (VS) : Up to 46V
- Logic Voltage (VSS) : 5V (Microcontroller Compatible)
- Continuous Current : 2A per channel
- Peak Current : 3A (Short Pulses)
- Motor Channels : 4 Independent Outputs
- Control Inputs : PWM & Logic (IN1, IN2, EN)
- Current Sensing : Analog Output (-1V to 2.3V)
- Protection : Flyback Diodes
- Board Size : Compact & Space-Efficient
Why Choose QuadPower?
- Reliable & Durable – Built with high-quality components for long-lasting performance.
- Easy to Use – Simple interface for seamless integration with Arduino, Raspberry Pi, ESP32, and more.
- Versatile Applications – Ideal for robotics, drones, electric vehicles, CNC machines, and industrial automation.
Applications
- Robotics & Drones – Precise movement control for robotic arms and mobile robots.
- CNC & 3D Printers – Reliable motor control for automated systems.
- Smart Vehicles – Control motors in electric skateboards, carts, and more.
- Home & Industrial Automation – Conveyor belts, smart actuators, and machinery.
What’s Included?
- 1x QuadPower Motor Driver Board
- Screw Terminals & Header Pins for Easy Connection
- Quick Start Guide & Online Documentation
Additional Resources
- Full Documentation & Datasheets : GitHub
- Support : team@swimplify.co
